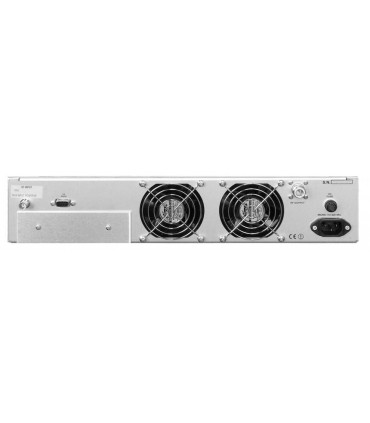

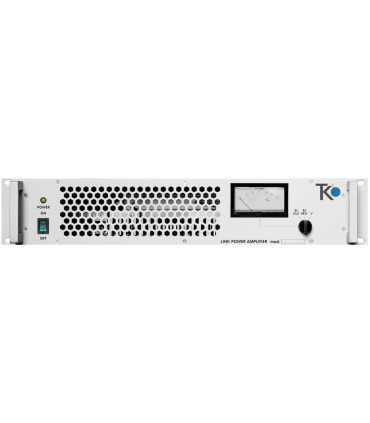

STL Radio Enlace Amplificador TK-STL-A5-20-A 1.4-2.5GHz
Oferta especial limitada
3.610,00 €
Sin impuestos
3.800,00 €
-5%
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Referencia:
TK-STL-A5-20-A
Marca:
Favorito0
Add to compare0
A lista de deseos
STL-A5-20-A
STL Radio Enlace Amplificador
A 1.4-2.5 GHz-20W-TEKO Broadcast
Nuestro STL Radio Enlace Amplificador fortalece la señal del transmisor STL para cubrir distancias muy largas-A 1.4-2.5 GHz-20W-Entrega Inmediata en todo el Mundo.
DESCRIPTION: Designed to transport audio signals from the studio to the transmission sites maintaining high quality.
These radio links were specifically designed to comply with the latest international standards and the requirements of advanced broadcasters, meeting tighter specifications than usually required, at an affordable cost.
Great care was spent into producing a Hi-Fi-quality modulated signal, with low residual noise and distortion. The RF signal is also free from spurious and harmonic components to a higher degree than required by CCIR, European, USA and most other national standards.
| Parameter | Value |
|---|---|
| FREQUENCY RANGE: | 170 - 960 MHz in 20MHz sub-bands |
| MODULATION: | FM |
| INPUT POWER: | 10 W Max |
| POWER OUT: | 50W (ASG), 100W(ASG-H), 300W (ASG-UH) |
| SPURIOUS EMISSION: | < -80dB |
| ARMONIC EMISSION: | < -75 dB |
| ASYNCRONOUS AM S/N Ratio: | >65 dB ref 100% AM 400Hz |
| SYNCRONOUS AM S/N Ratio: | >60 dB ref FM 75KHz 400Hz |
| RF INPUT CONNECTOR: | N or BNC FEMALE |
| RF OUT CONNECTOR: | N - FEMALE |
| OP. TEMPERATURE: | –10 - +45°C |
| MAXIMUM UMIDITY: | 90% non condensing |
| AC SUPPLY: | 110/240 VAC |
| DIMENSION: | 2 unit rack 19”, 430mm depth |
| WEIGHT: | 10 Kg (ASG) 12 Kg (ASG-H) 14KG (UH) |
