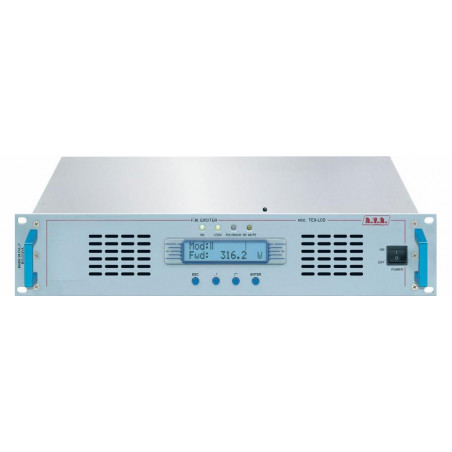

RVR TEX30LCD/S 30W - FM Transmitter - Stereo

30 watt stereo transmitter with LCD-display, RF connector out: N

Learn More

Limited special offer
€1,235.00 €1,300.00
-5%
Size chart
Women's clothing size
SizeXSSML
Euro 32/34 36 38 40
USA 0/2 4 6 8
Bust(in) 31-32 33 34 36
Bust(cm) 80.5-82.5 84.5 87 92
Waist(in) 24-25 26 27 29
Waist(cm) 62.5-64.5 66.5 69 74
Hips(in) 34-35 36 37 39
Hips(cm) 87.5-89.5 91.5 94 99
How To Measure Your Bust

With your arms relaxed at your sides, measure around the fullest part of your chest.

How To Measure Your Waist

Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

Reference:
RVRTEX30LCD/S30W
Brand:
Love0
Add to compare0
Add to wishlist
Description

RVR Elettronica TEX30LCD/S is a good solution for a low power fm transmitting station or as an exciter for a bigger fm amplifier broadcast system.

High quality at a very attractive price.Ideal for use as exciters in compact and modular system.

Features

PRIMARY APPLICATION: high quality at a very attractive price.Ideal for use as exciters in compact and modular system.

HARDWARE FEATURES: compact, non-deformable and light thanks to the stainless steel chassis, in 2 rack units only.

USER-FRIENDLY FEATURES: universal 80-260 V multi-voltage power supply enables operation without preselect voltage. Four pushbuttons for user/device interaction and software that offers a simple, intuitive interface.

RELIABILITY/CONTINUITY: APC (Automatic Power Control) and Foldback protection ensure reliable operation under any operating conditions.

AUDIO PERFORMANCE: low distortion and intermodulation values and a high noise/signal ratio.

OPERATING EFFICIENCY: incorporate a PFC (Power Factor Corrector) power supply, that provides the utmost efficiency for enhanced energy saving and environmental protection, which ensure high efficiency across the bandwidth.

EASE OF MAINTENANCE: advanced module engineering ensures extreme of access and simple maintenance.

INTERFACE CONTROL: total control thanks to microprocessor easily programmed from menu with all key parameters displayed on LCD.

INPUT/OUTPUT INTERFACE: built-in high-performance stereo coder, L&R analogue audio inputs, Mono inputs, MPX composite signal and auxiliary inputs for SCA / RDS signals.

RDS APPLICATION: built-in RDS encoder with UECP standard functions (option).

REMOTE CONTROL: built-in telemetry system via GSM modem, battery and battery charger or via WEB or via SNMP (option).

REGULATORY COMPLIANCE: state-of-the-art technology in full compliance with EC, FCC and CCIR standards.

Technical specifications:

Rated Output Power: 30 W. (adjustable 0,3 - 30 Watt)

Power Consumption: 70 W.

GENERAL FEATURES

- Weight: 7 Kg

- Dimensions: 1 Rack Unit (484 x 351 x 44 mm)

- AC Main: 110 / 220 VAC, 50 - 60 Hz

- Consumption: 10 VA

AUDIO INPUT (1 and 2)

- Connector Type: XLR female el. bal.

- Max Input Level: + 20 dBu

- Level adjust: + / - 10 dB

- Impedance: 10 K?

AUDIO OUTPUT

- Connector Type: XLR male el. bal.

- Max Output Level: + 20 dBu

- Ouput Levels: 0, + 6 dBu (internal setting)

- Impedance: 100 K?

'DRAW' OUTPUTS / UNBAL INPUTS

- Connector Type: Pin RCA

- Level: The same as XLR inputs and output

- Purpose: Unbal. mirror of XLR inputs and output

PERFORMANCE

- Linearity: ± 0,1 dB 10 Hz ÷ 100 kHz

- Noise: < - 90 dB (DIN Noise)

- Crosstalk L to R: < - 80 dB @ 1 kHz

AUDIO DETECTING STAGE

- Threshold: Adjustable, - 20 dB ÷ - 60 dB

- Detection delay: From a few seconds to a few minutes

REMOTE CONTROL INTERFACE

- Connector type: DB 25 p female

- Devices: 5 relays, 10 photocouplers

Product Details
RVRTEX30LCD/S30W
