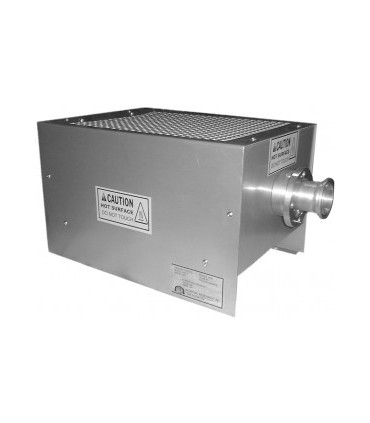

Static Air Cooled Model 6401

The Model 6400 Series Coaxial Loads were designed to cut off RF transmittion when

temperature in the load reaches 140°F. This allows for cooling of the load while keeping the

outlet air temperature cool enough to prevent burning if personnel come in contact with the air

flow.

€0.00
Size chart
Women's clothing size
SizeXSSML
Euro 32/34 36 38 40
USA 0/2 4 6 8
Bust(in) 31-32 33 34 36
Bust(cm) 80.5-82.5 84.5 87 92
Waist(in) 24-25 26 27 29
Waist(cm) 62.5-64.5 66.5 69 74
Hips(in) 34-35 36 37 39
Hips(cm) 87.5-89.5 91.5 94 99
How To Measure Your Bust

With your arms relaxed at your sides, measure around the fullest part of your chest.

How To Measure Your Waist

Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

Reference:
Modello 6401 Raffreddato ad Aria Statica-ALTRONIC RESEARCH
Brand:
Love0
Add to compare0
Add to wishlist
Description

Static Air Cooled Model 6401

Power Rating: 1kW continuous duty

Impedance: 50 ohms nominal

Frequency Range: DC to 240 MHz

Maximum VSWR: 1.15:1

Input Connectors: N – Female, 7/8″, 1 5/8″ EIA (others available)

Nominal Dimensions (Excluding Conn.): 10 1/2″ x 9″ x 17 1/4″

(26.7 cm x 22.9 cm x 43.8 cm)

Nominal Weight: 8 lbs. (3.6 kg)

Finish: Beige Splatter

RF Load Types

• RF load designs are determined by impedance, power

handling capability, cooling method, and frequency range:

→ Power handling capability: 1-watt, 10-20 watt, 100-300 watt,

or many kilowatts

→ Impedance is typically 50 ohms unless otherwise stated

→ Quality of match can vary from good (typical for “loads”) to

excellent (typical for precision “terminations”)

→ Cooling method could be ambient air, forced air, closed-system oil

conduction to air fins, forced water, etc. it depends on the

power levels involved

→ A “broadband” RF load will represent a 50-ohm match with low VSWR

over a specified frequency range, but some loads are designed to be

a good match at only one frequency
