Receiver STL-R3-B band 820-960MHz

Limited special offer
€1,330.00 No tax €1,400.00
-5%
Size chart
Women's clothing size
SizeXSSML
Euro 32/34 36 38 40
USA 0/2 4 6 8
Bust(in) 31-32 33 34 36
Bust(cm) 80.5-82.5 84.5 87 92
Waist(in) 24-25 26 27 29
Waist(cm) 62.5-64.5 66.5 69 74
Hips(in) 34-35 36 37 39
Hips(cm) 87.5-89.5 91.5 94 99
How To Measure Your Bust

With your arms relaxed at your sides, measure around the fullest part of your chest.

How To Measure Your Waist

Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

Reference:
TK-STL-R3-B
Brand:
Love0
Add to compare0
Add to wishlist
Description

STL-R3-B

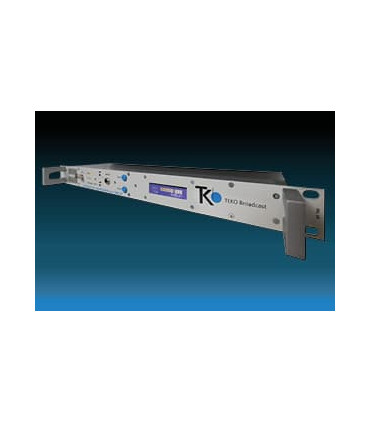

STL Link Receiver
Band 820-960MHz

The high quality SOUND on the market-STL Link Receiver audio signals coming from the Studio several miles away-B820-960MHz-On stock-Immediate delivery

A studio link transmitter, studio transmitter link, or STL is a special type of equipment used in broadcasting industry.

GENERAL DESCRIPTION

This transmitter and its companion receiver are the core of a high quality, synthesised studio-to-transmitter link (stl), to be used for broadcast repeaters in conjunction with any standard FM or AM transmitter. They are an evolution of the previous extablished series stl whose main circuitry is still extensively used here with a new controller, user interface and software and more advanced oscillators in a compatible 2u 19" case. They allow the reception of mono or stereo signal and its retransmission without using any additional stereo-coder on the receiving end: in both cases the LF output signal from the receiver must be sent to the stereo input (linear or not pre-emphasised) of the local FM rebroadcast transmitter.

The stl is built for several different frequency slots from VHF to the SHF range. Two main models are built: one for the 200÷960 MHz and the other for the 1300÷2500 MHz range. While the exterior cabinet, the controls, the basic circuitry and the performances are the same, some internal components vary or are specifically tuned as required to cover this wide frequency band. Usually these components are the local oscillator, the power amplifier and the input/output filters The factory adjusted frequency slots are 10 to 50 MHz wide and must be specified in the order. In the preset sub-range, the frequency and power of the transmitter may be freely changed on the field. The receiver may require some more adjustment for wider frequency displacement: in fact the adoption of narrow, low loss input filters permitted to achieve the best possible rejection of interfering signals in the band at the expense of some frequency agility. So nearly 8-10MHz may be used without any retouching but wider variation up to 50-60MHz will require retuning of the input filter.

Being the apparatuses completely digitally controlled, they are extensively on field programmable by front panel or remotely in every respect. The alphanumeric display permits easy and accurate metering, adjustment and continuous monitoring of modulation levels, power, operation and internal parameters. All these information are externally available on the same RS232 I/O port that may be used to remotely control the transmitter. In addition to the serial I/O,some signals and controls are available on a parallel I/O socket for easy interfacing with others analog controllers or supervisory systems. A powerful 3-levels password management permits a very high degree of security and privacy as may be required in different situations.

The LF input and output levels are precisely adjustable over a broad range, by means of 0.5dB stepwise variable attenuators. The transmitter has also an auxiliary input, specifically designed for RDS and SCA encoders. A modulation monitor output permits to control other transmitters or STL's with the same internally processed high-quality mpx signal. Furthermore, the system is optimised to be compatible with external digital companding encoder/decoders and to provide RDS and SCA signals, with almost no attenuation.

Optional top-quality stereo encoder/decoder boards may be factory installed on the transmitter/ receiver or field retrofitted with minimum required technical skill. The powerful internal software and monitoring functions recognise their presence and enable the functions. A universal switch-mode power supply permits operation in the extended 95-250 V ac range with no intervention and a 24 V back-up battery input is provided too.



TECHNICAL FEATURES RECEIVER

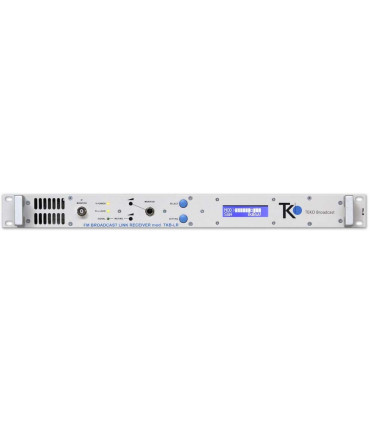

Like the Transmitter, the Receiver front panel accommodates the single control knob, the display, four leds for immediate status control and a single output connector for IF monitoring.

Here too regular operation is signallized by green leds: "PLL Lock" and "Field". This latter is a bi- stable and lights in yellow when RF field is too low or absent. As in the Transmitter red leds signals improper operation. The first one, "Modulation", is activated by low or absent modulation; the last one is the general "Alarm" led.

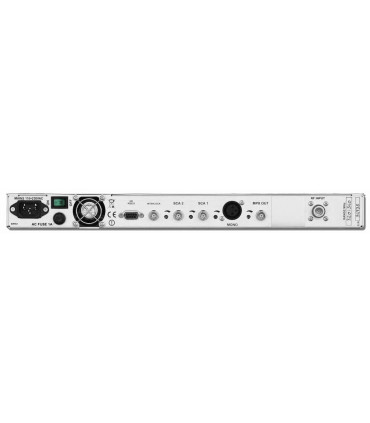

The Receiver I/O connectors on the rear panel are:
