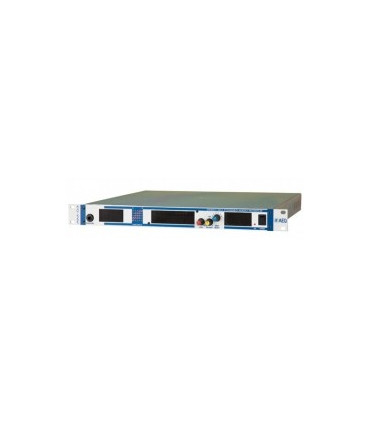

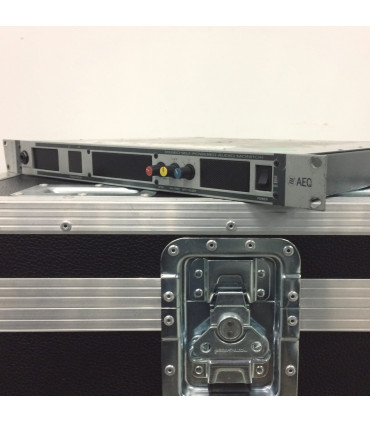

Audio Monitor AM-03 - AEQ

AEQ's AM-03 audio trusted monitor is intended for use in VTR, OB Van, TV and radio control rooms, and multimedia systems - wherever it is needed to monitor the presence and quality of high signal density audio and video.

All user controls are conveniently located on the front panel of the equipment, enabling quick, easy and error-free configuration, control and operation. The controls consist of switches and potentiometers that alleviate the need to navigate through menus.

Limited special offer
€2,080.50 No tax €2,190.00
Size chart
Women's clothing size
Euro 32/34 36 38 40
USA 0/2 4 6 8
Bust(in) 31-32 33 34 36
Bust(cm) 80.5-82.5 84.5 87 92
Waist(in) 24-25 26 27 29
Waist(cm) 62.5-64.5 66.5 69 74
Hips(in) 34-35 36 37 39
Hips(cm) 87.5-89.5 91.5 94 99
How To Measure Your Bust

With your arms relaxed at your sides, measure around the fullest part of your chest.

How To Measure Your Waist

Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

AM-03 - AEQ
Add to compare0
Add to wishlist

The AM 03 is the perfect choice for analogue audio monitoring. It offers 6electronically balanced stereo analogue inputs, 1 headphones output (with speaker

disconnect) and 1 stereo analogue output. It also has signal and phase presence indicator

AM 03 Features

o Switch and potentiometer controls.

o Stereo output monitoring with parallel output.

o Headphone connector with automatic speaker Disconnect.

o Multi-stage audio amplifiers and 2-way speakers with woofer and tweeter.

o Built-in limiter for speaker protection.

o Universal auto-ranging power supply: 90 - 250 VAC, 50/60 Hz, 70 VA.

o Dimensions: 1 RU 482.6 mm x 44.5 mm; 19" x 13/4".


o 6 stereo analogue audio inputs, selectable via switch on the front panel.

Electronically balanced, with RF filter.

o Impedance: >100K Ohms.

o Nominal level: 0 dBv.

o Hartmann male connectors with solderless type mating connectors included.


o 1 parallel analogue stereo audio output (at selected input), with direct cable connection.

o Socket for 8 - 600 Ohm stereo headphones. (1/4" female), with automatic speaker disconnection.


o Input selector switch (1, 2, 3, 4, 5 or 6).

o Output channel selector (L/R) and balance.

o Volume gain control.


o Signal presence indicator and audio signal phase meter: 25 led matrix, in 5 x 5 configuration.
