ACUO 908 the new series for On Air transmission console!
Modern and compact design, in line with the latest design trends, together with a careful ergonomic study and it is the new reference point in the sector, with versatile versatility, it can be easily used even when working outdoors.
ACUO 908, with eight channels and two selectable inputs, microphone and balanced line inputs, AES / EBU digital inputs and outputs, two integrated hybrids, two internal sound cards with USB connectivity, the function is a perfect and complete On Air console for radio stations .
- Balanced inputs and outputs
- Eight channels with double input
- A / B control selection for each input channel
- 100 mm ALPS sliders, with VCA digital control
- Four balanced microphone inputs on XLR connectors and with phantom power enabled
- Eight balanced stereo line inputs with RJ-45 connectors
- Two digital AES / EBU inputs
- Three band digital equalization on all inputs
- Two integrated hybrids with parametric equalizer
- Hybrid phone meeting function
- Monitoring of the CUE bus
- Three independent balanced stereo outputs (PGM, UTL, AUX)
- Two independent professional AES / EBU digital outputs (PGM, UTL)
- Stereo audio output, Control Room and Control Studio, with monitor mode selection
- Changing room control room exit
- Balanced EXT stereo service input
- Two integrated sound cards with USB interface for extremely easy and versatile audio operation and interconnection
- Logic OnAir opto coupled logic gate
- Fully shielded bus

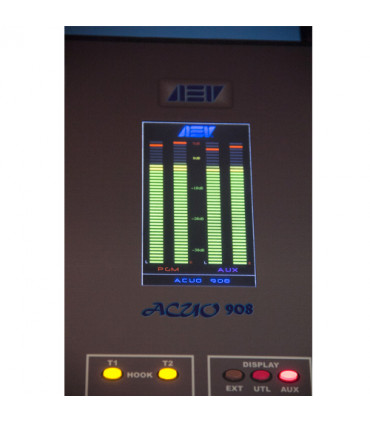

- Large 4.3 "digital graphic display, with monitor function and control of all functions; digital stereo led meter: PGM and CUE
- Extremely thin and elegant frame for easy and practical positioning.
