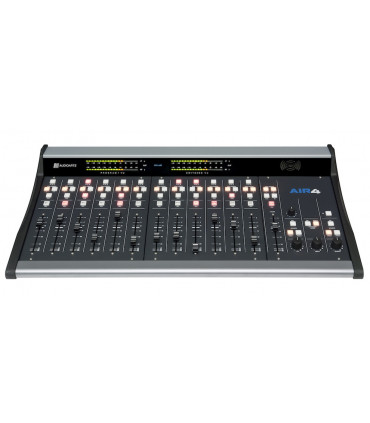

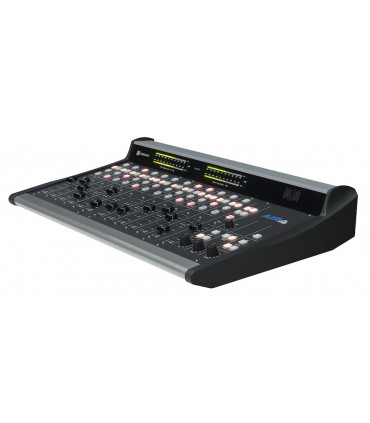

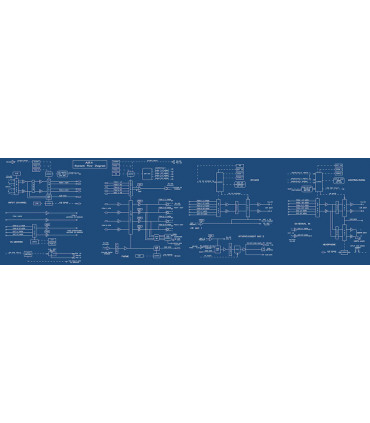

- 12 stereo input fader channels, each with A and B inputs and remote START logic
- 13th phone caller fader with talkback and auto mix-minus to caller
- Four high performance mic preamps with variable gain trims to precisely match your microphones; preamp outputs jumper to any input fader’s A or B input
- Two program busses with balanced outputs (switchable stereo or mono mode)
- External input feeds the monitor section (for live air or pre-delay air monitoring)
- CR room monitor switchable PGM 1, PGM 2 or external; can mute when CR mic is live
- Split cue — when any fader is in CUE, sends cue audio to left channel and L+R sum of selected monitor source to right channel (switchable separately for CR and headphone)On-air light — front panel LED between the meters, and a low current closure output to drive an external ON AIR light relay.
- Studio output with independent source selection and CR-to-studio talkback button
- Plug in faders and conductive plastic monitor pots for easy replacement
- USB connection that is patchable to any of your input faders and internally dipswitchable to pick up program 1 or program 2 output mixes. Lets the AIR-4 interface with your desktop computer for news, music sweetening functions or to stream audio mixes from and to the console.
- Built-in cue speaker can automatically interrupt your main stereo monitors

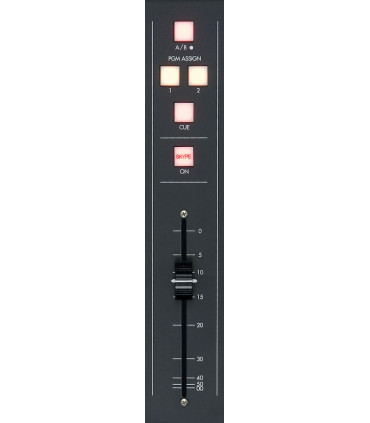

Source Select Selects between two analog stereo sources: A and B
Program Assign Assign the selected source signal to any combination of the console’s two stereo Program outputs
Cue Button Places the channel’s signal on the console’s cue bus.
ON Button Turns the channel on and off by means of electronic switching and can simultaneously start external source machines.
Fader Sets the channel’s level.
Caller Input section
Program Assign Output switches assign the caller to any combination of the console’s two PROGRAM outputs and permit live talk-ins.
CUE Button Allows interviewing the caller prior to airing by including the caller’s voice in the console’s cue bus, where it may be heard on the meterbridge mounted cue speaker.
TB Button When the TB switch is pressed (it is momentary action), Mic 1 will interrupt the regular caller signal, thus allowing the DJ to talk to the caller prior to airing.
ON Button Determines if the phone channel is ON or OFF.
Fader Sets the caller’s signal level.

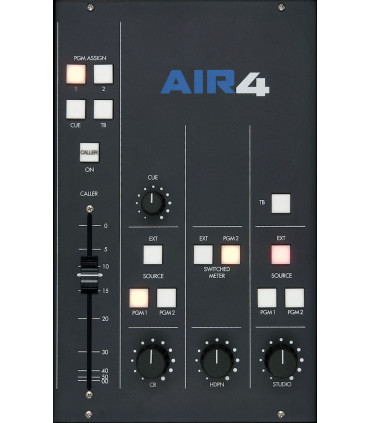

Control Room/Monitor Section
CUE Level Control Determines the overall loudness of the cue signal as it appears in the console’s cue speaker.
EXT Switch Pressing the EXT switch allows the operator to pick up the external input (useful for such items as tape recorders or air returns) to listen.
Program Select Pressing either of the two program switches allows the operator to listen to the selected output bus.
CR (CONTROL ROOM Level Control) Determines the overall loudness of the signal being monitored as it appears in the Control Room speakers.
METERS Select Buttons Select the source for the switched meter pair.
HDPN (HEADPHONE Level Control) Determines the overall loudness of the headphone output signal.
Studio Monitor Section
TB (Talkback) Button Lets the operator’s microphone signal interrupt the normal feed to the studio speakers, allowing the operator to talk to the performers in the Studio.
EXT Switch Pressing the EXT switch allows the external balanced input (such as tape recorders or air returns) to be heard in the studio.
Program Select Pressing either of the two program switches allows the selected output bus to be heard in the studio.
Studio Level Control Determines the overall loudness of the signal being monitored as it appears in the Studio speakers.
