Hybrid Telephone TELEREPORT PLUS AEV
Portable GSM phone hybrid
Description
TELEREPORT Plus is the new portable telephone device (with digital echo canceller) developed by AEV thanks to its ultra-decennial experience in the field of telephone transmission systems.
Its small size and weight are the ideal solution for Reportage Service and for audio transfer both through dial-up telephone lines and GSM mobile.
It is particularly suitable for conditions in which the reporter's operation is limited by the absence of dedicated connections.
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
TELEREPORT PLUS AEV

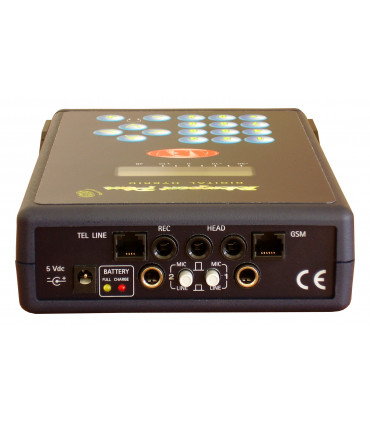

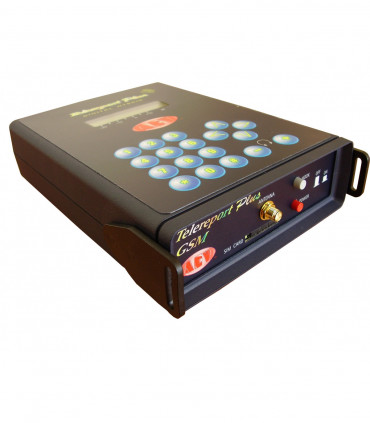

This device is housed inside a shockproof shell. On the upper panel, with the keyboard, there is an LCD display (65×14), which displays the instrument status and the connection for the GSM cell phone.
Scrolling through the menus is done with the "arrow keys" is also located on the front panel a numeric keypad, which is used for selection and to store / recall the corresponding numbers.
Main functions
Control and management by DSP microprocessor,
Maximum separation between incoming and outgoing audio from the line thanks to the digital cancellation circuit in case of call on dial-up line
Parametric equalizer capable of equalizing the incoming audio signal, thus optimizing the frequency response and gain of the received signal based on the quality of the available filter line.
Equipped with an internal GSM module, with external antenna: it can be connected to the TELEREPORT PLUS through the connector placed on the front panel.
Internal NiMh high efficiency batteries, their recharge is controlled by a special circuit, ensuring maximum efficiency and durability.
Call and busy circuit with DTMF tone detection and replay.
Test tone generation to adjust the audio through the telephone line.
Features
- - Two audio inputs, with Micro/Line selection via panel button.
- - Two headphone outputs with level adjustment via digital potentiometer located on the panel, with level display on the diplay.
- - Audio output REC, with level adjustment through special menu and relative visualization on the display.
- - Through the keyboard you can access all the functions shown on the display
