ATEM Mini by Blackmagic Design Video Mixer
Multi-camera live productions with advanced broadcast features
With ATEM Mini switchers, it's easy to create professional multi-camera productions that stream live to YouTube and innovative business presentations on Skype or Zoom! You can switch between eight camera inputs with outstanding image quality, connect game consoles or a computer for PowerPoint presentations. The internal DVE allows you to create fantastic picture-in-picture effects. All models have a USB connection that is detected as a webcam and allows you to use any streaming software. ATEM Mini Pro and ATEM Mini Extreme also offer live streaming and recording to USB discs. Not only that, ATEM Mini packs advanced broadcast features for high-end projects!
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
ATEM MINI
4-CHANNEL HDMI VIDEO MIXER
ATEM Mini switchers make it easy to create professional multi-camera productions for live streaming on YouTube and innovative business presentations using Skype or Zoom. Simply plug in the ATEM Mini and you can select the 4 high-quality camera inputs live for significantly better image quality. Or connect a computer for PowerPoint slides or game consoles. The built-in DVE allows for exciting picture-in-picture (PiP) effects, perfect for reporting. There are also many video effects. All ATEM Mini models have USB that works like a webcam, so you can use any software for streaming.

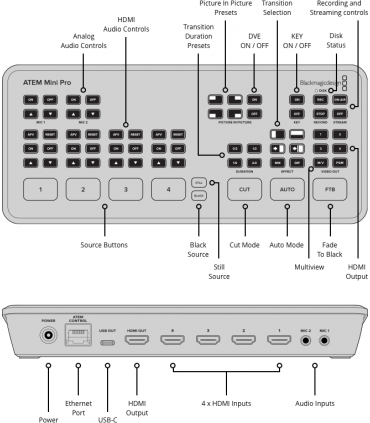

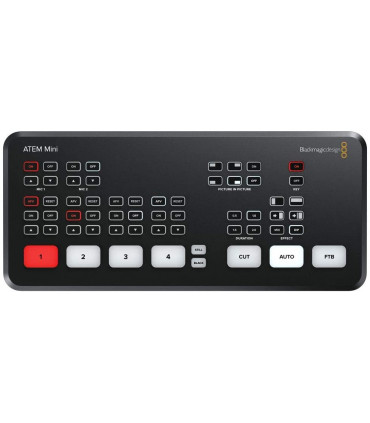

The ATEM Mini's compact all-in-one design offers a front panel and connections on the back. On the panel you'll find buttons to select sources, video effects and transitions. Source selection buttons are larger for easy touch detection. There are also special buttons for audio mixing.

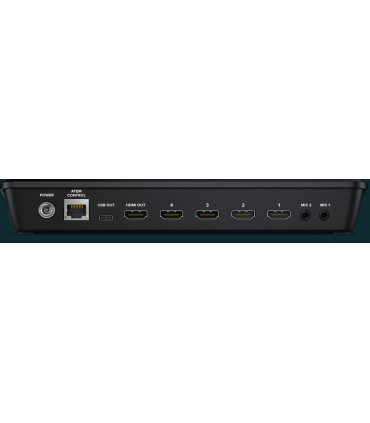

On the back, you'll find HDMI connections for cameras and computers, microphone inputs, a USB webcam output and an Aux-style HDMI output for program video.
It sets up in a snap and is easy to use. It offers 4 HDMI inputs with standards conversion, a USB webcam output and HDMI output, a Fairlight audio mixer with EQ and dynamics, DVE for picture-in-picture, transitions with effects, chroma key for green screen, archive for 20 frames per title, and ATEM Software Control.
Ideal for interviews because it allows you to connect multiple cameras to capture close-ups of participants and long shots. Plus, with such a compact design, the presenter can switch directly in the studio. Take advantage of the HDMI output to record or stream with Open Broadcaster.
Dramatically improve the quality of business presentations on Skype with the ATEM Mini. The software detects the switcher as a webcam, which you can select in the settings. You only need a camera for close-ups, a camera for wide-angle shots, and a computer for PowerPoint slides. You can also add image effects into the picture.
The ATEM Mini offers a USB connection for maximum compatibility, so it can be used with any video software. In fact, the software will read the ATEM Mini as if it were a webcam, while it is a true switcher for live productions. You can work with 1080HD quality at full resolution and with your favorite software, for example Open Broadcaster for live streaming and Skype for presentations. ATEM Mini is also compatible with software and platforms such as Open Broadcaster, XSplit Broadcaster, YouTube Live, Facebook Live, Skype, Zoom, Twitch, Periscope, Livestream and Wirecast.
ATEM Mini offers numerous video effects to create professional quality productions.
ATEM Mini by Blackmagic Design
- Live production mixer
- Ideal for streaming to YouTube, Skype or corporate presentations
- USB output for web streaming and HDMI output for on-site presentations
- USB output works as a webcam
- Four HDMI inputs for video sources such as camcorders, computers or gaming consoles
- Built-in DVE processor for picture-in-picture effects and full HD DVE transitions
- Broadcast-quality transitions including mix, dip and wipe
- Two stereo audio inputs for connecting desktop or clip-on microphones
- Internal memory for 20 RGBA graphics for titles, opening panels and logos
- Includes an ATEM Advanced Chroma Keyer for working with green or blue screens
- Audio mixer supports limiter, compressor, 6-band equalizer and more
- Up converter and cross converter
- Automatically converts 1080p, 1080i and 720 sources to the mixer's video standard
- Automatic resynchronization on all HDMI inputs
- Built-in Ethernet control and SDK allow development of custom solutions
- Video inputs: 4x HDMI (Type A, 10-bit HD, switchable, 2-channel embedded audio)
- Video outputs: 1x HDMI (Type A), 1x USB (Type C 3.1 Gen1)
- Audio inputs: 2x 3.5mm stereo mini jacks
- Media player: 1
- Dimensions (W x H x D): 238 x 35 x 104 mm
- Weight: 0.55 kg
