Blackmagic ATEM CONSTELLATION 8K

ATEM CONSTELLATION 8K

ATEM Constellation 8K is an Ultra HD switcher for live production, packed with ultra-high performance features capable of operating even in 8K! Equipped with 4 M/E, it offers 40 12G-SDI inputs, 24 12G-SDI aux outputs, 4 DVE, 16 keyers, 4 media players, 4 multiview outputs, 2 SuperSource and SDI inputs with standard conversion. When used in 8K mode, all these functions also adopt the same format! It includes talkback function and a professional 156-channel Fairlight audio mixer with EQ and dynamics. You can also use it with the free ATEM Software Control software or with one of the formidable ATEM Advanced Panels.

Limited special offer
€14,616.70 No tax €15,386.00
-5%
Size chart
Women's clothing size
SizeXSSML
Euro 32/34 36 38 40
USA 0/2 4 6 8
Bust(in) 31-32 33 34 36
Bust(cm) 80.5-82.5 84.5 87 92
Waist(in) 24-25 26 27 29
Waist(cm) 62.5-64.5 66.5 69 74
Hips(in) 34-35 36 37 39
Hips(cm) 87.5-89.5 91.5 94 99
How To Measure Your Bust

With your arms relaxed at your sides, measure around the fullest part of your chest.

How To Measure Your Waist

Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

Reference:
Blackmagic ATEM CONSTELLATION 8K
Love0
Add to compare0
Add to wishlist
Description

Blackmagic Design ATEM Constellation 8K

19" Ultra HD Live Production Mixer

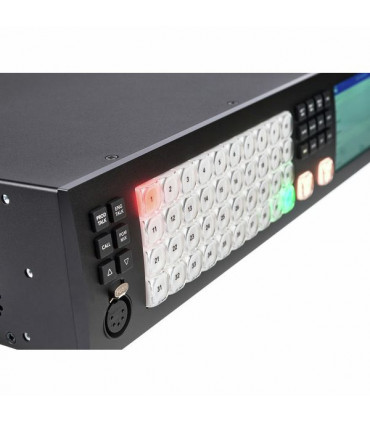

Fully controllable from the front panel

40 Standard-convertible 12G-SDI inputs

24 Freely assignable 12G-SDI outputs

Includes 8K multiview with labels, tally and level meters

Transitions, DVE, stinger and more for broadcasting

8K DVE in full resolution

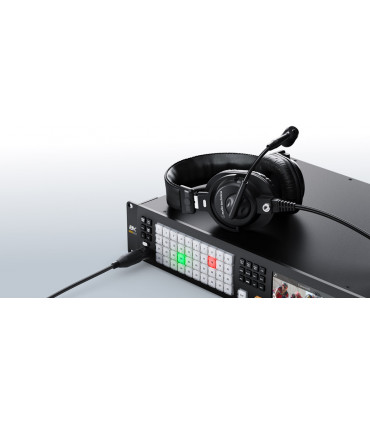

Professional broadcast talkback

Internal media storage for stills and motion graphics

New ATEM Advanced Chroma Keyer in 8K incl. multirate 12G-SDI for HD, Ultra HD and native 8K

Professional Fairlight audio mixer

Standards: HD, UHD, 8K

Colour spaces: REC 601, REC 709, REC 2020

Media player 4 x up to Ultra HD / 1 x in 8K

Channels: Fill-and-Key for each media player

Media Pool capacity for still images: 64 x up to Ultra HD / 24 x in 8K with fill-and-key

Media Pool capacity for clips: 4 x up to Ultra HD / 2 x in 8K with fill-and-key

Media Player clip length in 720 HD: 3200 frames

Media Player clip length in 1080 HD: 1600 frames

Media Player clip length in Ultra HD: 400 frames

Media Player clip length in 8K: 100 frames

Media Pool Still image formats: PNG, TGA, BMP, GIF, JPEG and TIFF

Media Pool video file formats: TGA sequence

Media Pool audio file formats: WAV, MP3 and AIFF

Supported operating systems: Mac Mojave 10.14, Mac Catalina 10.15 or higher / Windows 8.1 and 10, both 64 bit, Windows 8.1 and 10, both 64 bit

Power supply: 2 integrated 100 - 240 AC power supplies (2 IEC power cables are required - not included)

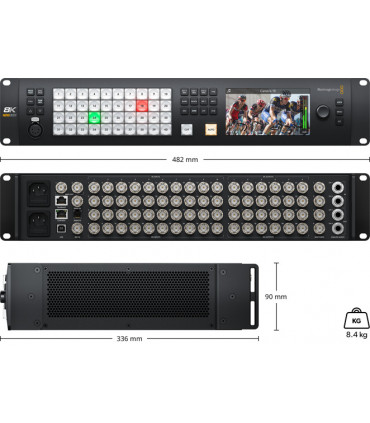

Dimensions (W x H x D ): 482 x 90 (2U) x 336 mm

Weight: 8.4 kg

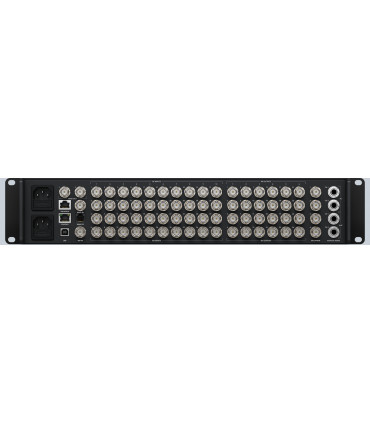

Connections:

Total of 40 video inputs up to Ultra HD / 10 of them in 8K

Total of 28 video outputs up to Ultra HD / 7 of them in 8K

24 Aux outputs in total up to Ultra HD / 6 of them in 8K

SDI rates: 1.5 G, 3 G, 6 G, 12 G

Total audio inputs: 2 balanced 1/4" jacks, 1 x 32 stereo channels via BNC and MADI inputs

Total audio outputs: 2 balanced 1/4-inch jacks, 1 x 32 stereo channels via BNC and MADI outputs

Reference input for tri-sync or black burst

Video inputs with resync on all 40 inputs

Frame rate and format converters on all 40 inputs

SDI video inputs: 40 for 10 bit 720p, 1080i, 1080p, 2160p, 10 are switchable to 4320p

Extra audio outputs: 1 x 5-pin XLR socket for talkback

SDI audio outputs: 2 channels embedded SDI output on all outputs

Extra audio inputs: 1 x 5-pin XLR female for talkback

SDI programme outputs: any of the 24 SDI outputs

SDI preview outputs: any of the 24 SDI outputs

Number of Multi Views: 4 up to Ultra HD / 1 in 8K

4 SDI multiview outputs

Console connection: Ethernet - supports 10/100/1000 BaseT and allows direct connection between console and housing or via network

Internal timecode generator

Tally output: added via Ethernet connection to Blackmagic Design GPI and Tally Interface (not included)

Computer interface: 1 USB 2.0 port
