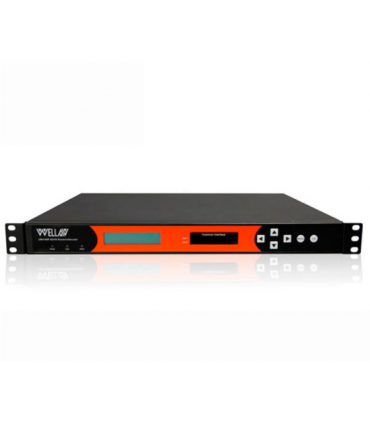

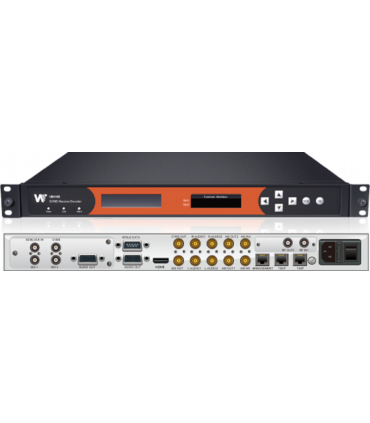

Wellav - UMH-160R-IP SD/HD Encoder

UMH160R Receiver/Decoder

UMH160R can receive digital signals from various of inputs (DVB-S/S2, DVB-C, DVB-T/ISDB-T, ASI and IP), decrypt, process/select programs to various outputs including CVBS, HDMI, SD/HD SDI, ASI, TS/IP and QAM/OFDM. It supports multi-channel descrambling, multiplexing, external table/data insertion, transcoding and transmodulating. It also supports video decoding with two audio channels. With remote web-based management interfaces, it is ideal to support advanced content distribution, real-time signal conversion and transmission via IP.

Limited special offer
€1,805.00 No tax €1,900.00
-5%
Size chart
Women's clothing size
SizeXSSML
Euro 32/34 36 38 40
USA 0/2 4 6 8
Bust(in) 31-32 33 34 36
Bust(cm) 80.5-82.5 84.5 87 92
Waist(in) 24-25 26 27 29
Waist(cm) 62.5-64.5 66.5 69 74
Hips(in) 34-35 36 37 39
Hips(cm) 87.5-89.5 91.5 94 99
How To Measure Your Bust

With your arms relaxed at your sides, measure around the fullest part of your chest.

How To Measure Your Waist

Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

Reference:
Wellav - UMH-160R-IP SD/HD Encoder
Love0
Add to compare0
Add to wishlist
Description

Wellav - UMH-160R-IP SD/HD

Features:

Receive MPEG-2/H.264 signals from two transponders (DVB-S2) or two frequencies (DVB-C, DVB-T or ISDB-T).

Decrypt multi-channel programs by Conax, Irdeto, NDS, Viacess, Verimatrix, BISS-1/BISS-E or other DVB-based condition access systems via dual independent CI slots.

Optional four-channel Annex A/B QAM output or two-channel OFDM output, ideal for transmodulation

Support program multiplexing, filtering, AD/EPG insertion and cherry picking.

Support two pairs of audio decoding

Support balanced/unbalanced analog audios, GPI and cue tone

Optional 4 channel MPEG2 to/from H264 transcoding ( 2 for HD programs)

Web-based management interface

Specifications:

DVB-S/S2 Input

2XRF input per unit

Constellation

QPSK, 8 PSK

Symbol Rate DVB-S

1~45 Msps (QPSK: 1/2,2/3,3/4,5/6,7/8),

DVB-S2

1~31.5 Msps (QPSK: 1/2,3/5,2/3,3/4,5/6,8/9,9/10;

8PSK: 3/5,2/3,3/4,5/6,8/9, 9/10 )

Input Frequency

950~2150 MHz

Signal Level

~-65~-25 dBm

Acquisition Range

+/- 5 MHz

Tuner Step Size

100 KHz

Return Loss

>10 dB

LNB Power

Vertical: 11.5V~14.0V,  Horizontal: 16.0V~19.0V,

22K Switch

on/off

QAM RF Input (optional)

Input Frequency Range 48 -862 MHz

RF Channel

4 (6/7/8 MHz) per module

QAM Modulation Mode

16/32/64/128/256 QAM

QAM Type

ITU-T J.83 Annex A/ C, Annex B (64/256QAM)

Symbol Rate

1.0~6.9 MBauds

RF input bit-rate

up to 55 Mbps

QAM RF Input (optional)

Input Frequency Range

48 -862 MHz

RF Channel

2(6/7/8 MHz) per unit

QAM Modulation Mode

16/32/64/128/256 QAM

QAM Type

ITU-T J.83 Annex A/ C, Annex B (64/256QAM)

Symbol Rate

1.0~6.9 MBauds

RF input bit-rate

up to 55 Mbps

DVB-T/ISDB-T Input (optional)

Input Frequency Range

48 -862 MHz

RF Channel

2 (6/7/8 MHz) per unit

QAM Modulation Mode

16/64 QAM

DVB De-scrambling

DVB-CI Interfaces

up to 2 independent CI slots (EN50221)

CA Method

Multicrypt/Simulcrypt, Hot Plug

CAS

Irdeto, Conax, Viacess, Nagravision, Novel SuperTV, Verimatrix, CTI, Dvcrypt&other DVB-simulcrypt CAS

GBE IP Interface

Interface

1 x 1000 Mbps per port

IP Encapsulation

MPEG TS over UDP/RTP

MPEG TS

MPTS and SPTS

I/O Processing

Up to 12 Sockets, max at 72 Mbps per socket

Addressing

Unicast and Multicast

Management

IGMPv1, IGMPv2, IGMPv3

Forward Error Correction

ProMPEG

DVB ASI interface

Interface

4 BNC connectors (2 ASI inputs), 75Ω

MPEG Format

188/204Byte per TS

I/O Processing

1 MPTS/SPTS per port, up to 120 Mbps per port

Re-multiplexing

PID

Re-mapping and Filtering

MPTS Output Synchronization

Routing

Any Input to Any Output

Redundancy

Input Service Redundancy & IP Port Redundancy

Management

Interface

100BaseTX, RJ45

NMS

Wellav Digital Service Manager

Web-based Management (future feature)

Support SNMP

Physical & Environment

Input Voltage

90 – 260 VAC

Power Consumption

Approx 40 W

Rack Space 1 RU

Dimension (WxHxD)

480mm x 44mm x 440mm

Operating Temperature

0o to 50oC

Storage Temperature

-40o to 65oC

Relative Operating Humidity <95%
