638 INOmini Iovonics Broadcast FM|HD Radio Monitor SiteStreamer with Web Interface

638 INOmini FM HD Radio SiteStreamer™ with Web Interface: 87.5MHz to 107.9MHz in 100kHz steps

Inovonics 638 Site Streamer´s  Station Rotation™ feature permits monitoring of station presets by ‘round robin’ sequencing of up to 30 stations - each with its specific alarm parameters.

The Inovonics INOmini 638 SiteStreamer™ is a Web-enabled FM and HD Radio™ receiver for remote signal monitoring. Installed at a broadcast transmitter or translator site, or any remote location with an Internet connection, the 638 streams audio from single or multiple (sequenced) off-air sources, or from a hard-wired program audio feed, back to any computer, tablet or mobile device.

Limited special offer
€1,053.00 No tax €1,170.00
-10%
Size chart
Women's clothing size
SizeXSSML
Euro 32/34 36 38 40
USA 0/2 4 6 8
Bust(in) 31-32 33 34 36
Bust(cm) 80.5-82.5 84.5 87 92
Waist(in) 24-25 26 27 29
Waist(cm) 62.5-64.5 66.5 69 74
Hips(in) 34-35 36 37 39
Hips(cm) 87.5-89.5 91.5 94 99
How To Measure Your Bust

With your arms relaxed at your sides, measure around the fullest part of your chest.

How To Measure Your Waist

Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

Reference:
638 INOmini HD Iovonics
Brand:
Love0
Add to compare0
Add to wishlist
Description

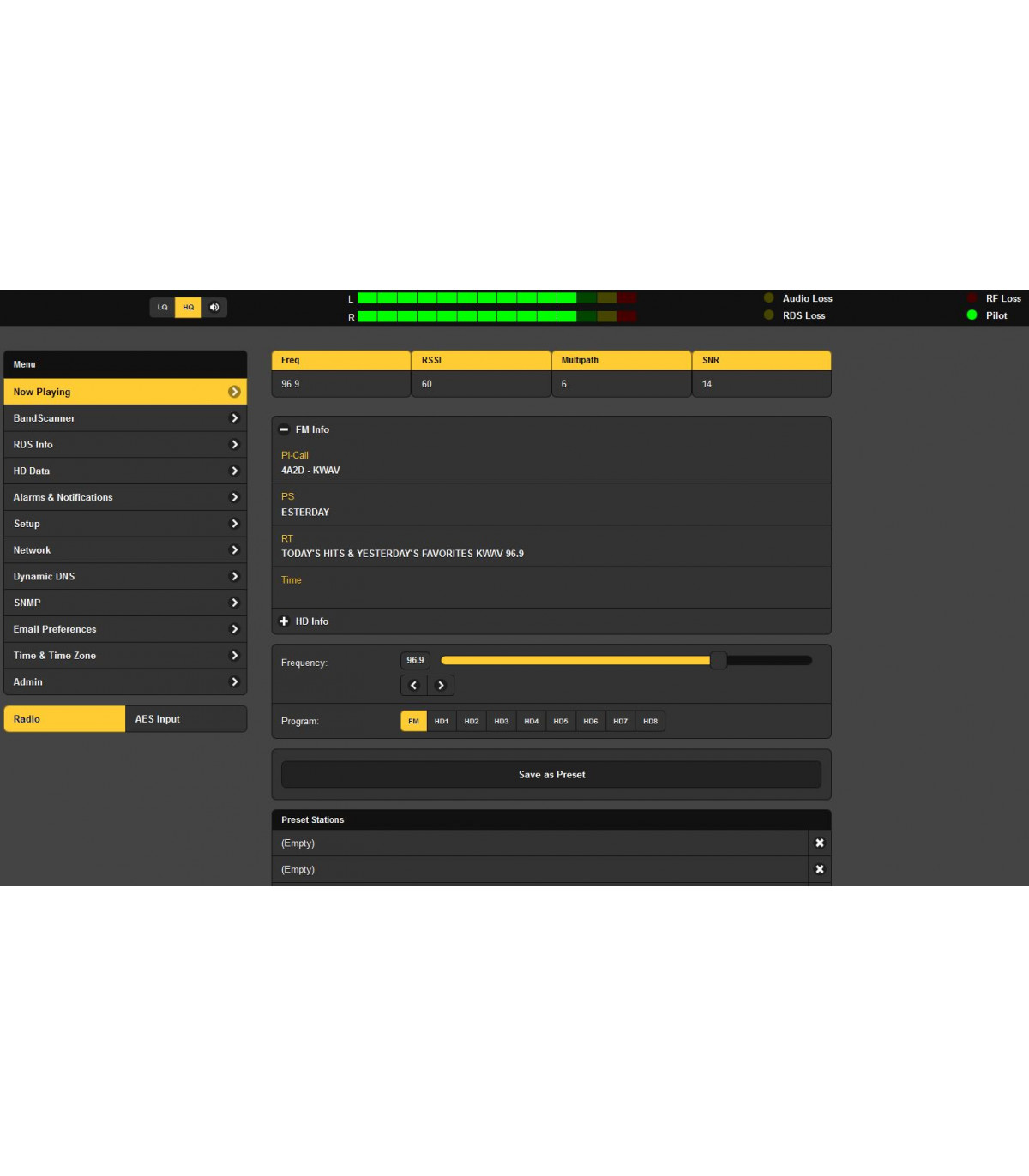

A browser-accessed Web Interface enables remote tuning and source switching. The Web Interface also displays audio levels, signal metrics, RDS data that accompanies the FM program, and PAD data associated with HD Radio™ programming. The SiteStreamer™ logs all alarm conditions, and any or all failure alarms may be dispatched instantly by email or SMS/text messaging.

Features

  • Monitor your off-air analog-FM or HD Radio™ signal (HD1 – HD8) from any remote location.
  • BandScanner™ gives a spectrum plot of all or part of the FM band.
  • ‘Station Rotation’ can monitor multiple station sequentially.
  • AES digital AUX input can monitor hardwired audio program feeds (A/B between source and air).
  • Full dynamic browser support of all operating features, including audio streaming through the dynamic Web Interface
  • Sends instant error messages via email or SMS text; logs signal loss, audio loss, pilot loss, HD loss, and RDS errors (hijacking)

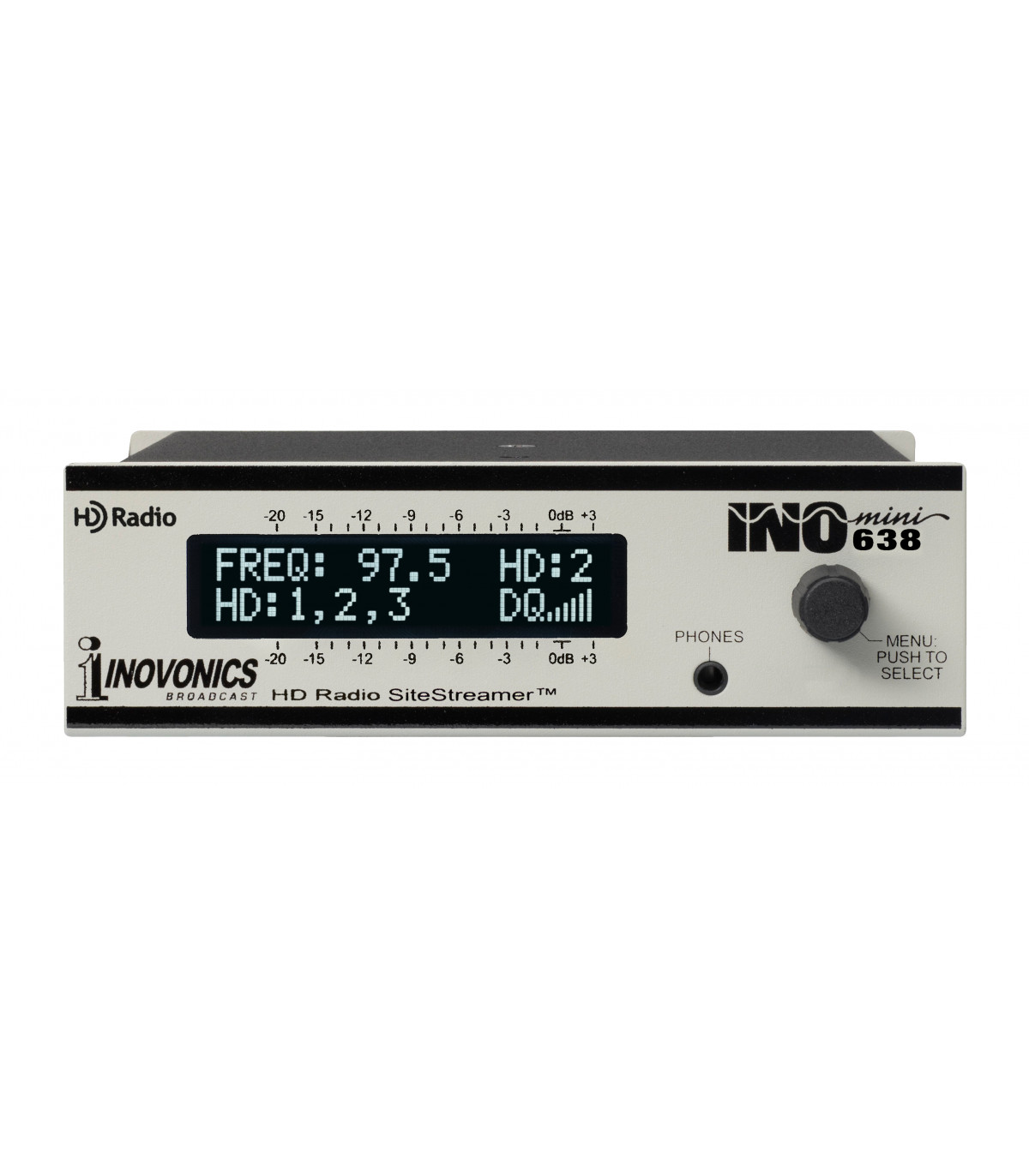

  • Accurate front-panel and Web Interface program audio level display
  • Easy setup and operation; full SNMP support
  • Headphone jack

638 INOmini Iovonics Broadcast FM HD Radio Monitor SiteStreamer with Web Interface

Specifications

Tuning Range

76.0MHz to 108.0MHz in 100kHz steps

Antenna Input

75-ohm ‘F’

Receiver Sensitivity

≤10μV for 50dB monaural FM SNR

Audio Response

FM: ±1dB, 30Hz to 15kHz; 75μs/50μs de-emphasis HD Radio™: ±0.25dB, 20Hz to 20kHz

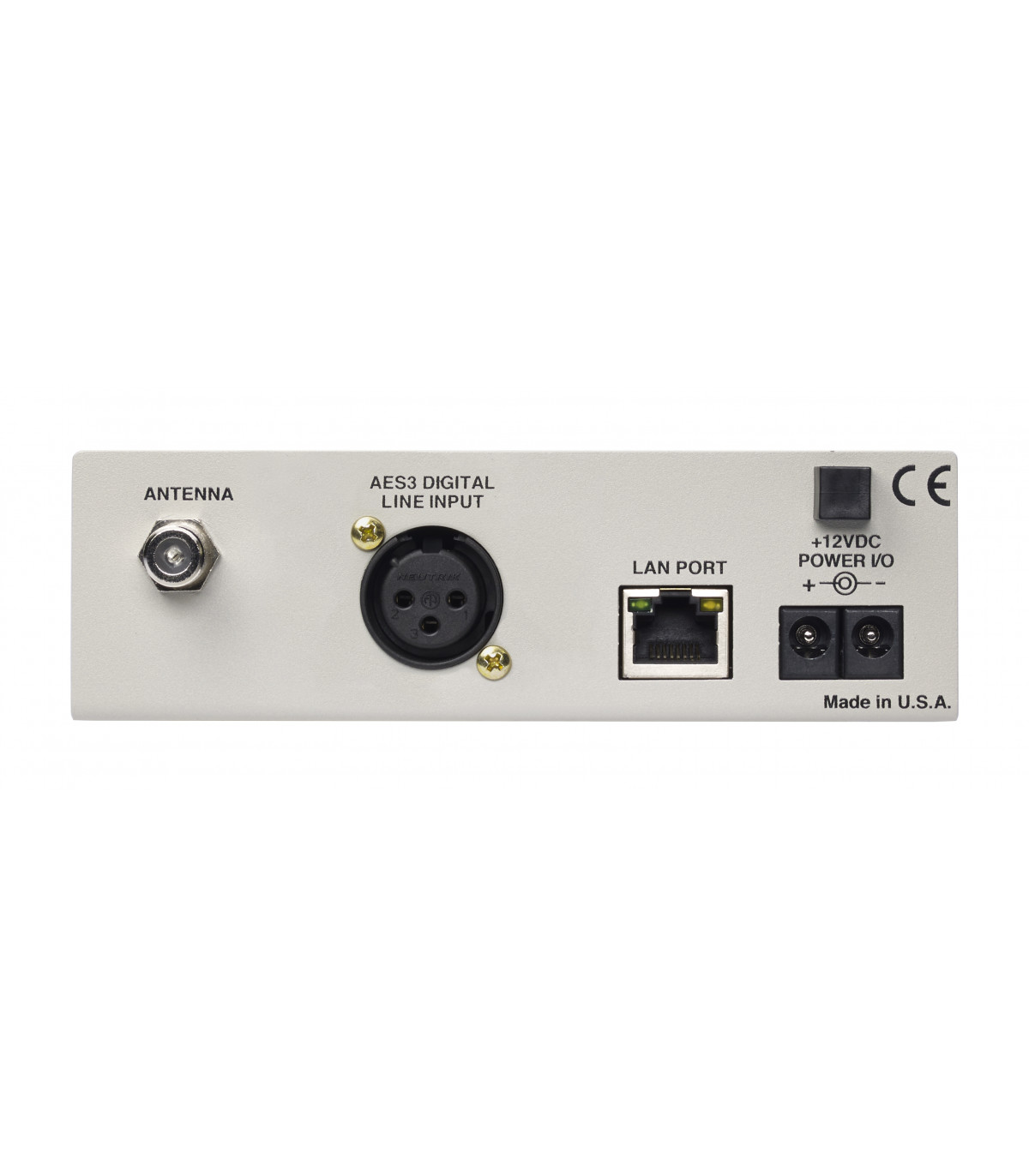

Program Line Input

AES3 (XLR) digital AUX input; menu selectable scaling for a ‘0-VU’ reference at digital signal levels of 0dBFS, –18dBFS, –20dBFS, –24dBFS

Headphone Jack

Front-panel (TRS) 3.5mm

Network Connection

LAN (RJ45) jack accepts universal TCP/ IP connection to Local Area Network, and via router to the Internet

Alarms

Low Signal, Audio Loss, Pilot Loss, HD Loss , RDS Loss or PI Mismatch

Power Requirement

12VDC at 115mA (2.1mm x 5.5mm coaxial); inline switchmode power supply included

Mounting Options

An optional rack adapter mounts one, two or three INOmini format units in a standard 19-inch, 1U rack space.

Size and Weight

1.6”H x 5.5”W x 5.5”D; 4 lbs./3kg shipping weight

638 INOmini Iovonics Broadcast FM HD Radio Monitor SiteStreamer with Web Interface

Product Details
638 INOmini HD Iovonics
